What are the technical advantages of SLA industrial-grade 3D printers?

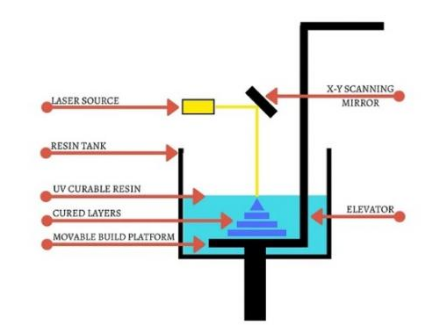

SLA industrial-grade 3D printer, which is called SLA 3D photo-curable molding technology, can print any shape product prototype with accuracy up to 0.05mm without dead Angle in 360 degrees, realizing modelless manufacturing.

I. eight core technologies, double the printing efficiency. 1. Intelligent spot variable power high-speed scanning system, which increases the printing speed of fixed spot by 20%~100%; 2. A process parameter library can be set up for different thickness to facilitate switching management and improve printing efficiency; 3. Triple lock scanning technology, with multiple contour scanning and smooth printing mode, high speed printing at the same time to give attention to precision, so that under the same layer thickness, the surface finish is higher; 4. Support for fast batch import of printing data, online adjustment of part position, support for multi-part automatic typesetting, improve printing efficiency.

5. Scan path database system, scan path automation, scan path customization, optimize the overall quality and speed of the print; 6. Automatically identify upper and lower epidermis, and set different process parameters for different parts of the model, such as upper epidermis, lower epidermis, contour, entity, support, etc., to improve the printing speed; 7. Advanced intelligent vacuum adsorption system, uniform and reliable coating, improved printing speed, large parts can be printed; 8. The use of high-quality fixed laser, stable and reliable, high power, faster molding speed.

pIYBAF50gX-ALRI9AAELCbjbGv0974

Ⅱ. eight optimization design, ensure stability and precision. 1. High precision liquid level detection asynchronous control system, to ensure more stable printing; 2. Online laser detection, automatic compensation for power attenuation, automatic setting of process parameters in the whole process to ensure the stability of printing; 3. Adopt the principle of precise positioning, avoid the design and use difficulties of large area calibration plate, and greatly improve the accuracy and flexibility of automatic calibration; 4. Adopt balance block type level adjustment structure, cooperate with high-precision level detection system, realize fast level control more accurately, and print process more stable.

5. The width of the resin groove is designed with redundancy, so as to fully avoid the motion mechanism such as the guide rail contaminated by resin, so as to ensure the maximum scraping range of the single layer, as well as the molding accuracy and efficiency of the workpiece; 6. Hot air circulating heating system, heating the surface resin, can not only control the temperature of the resin and avoid resin deterioration, and the machine’s power consumption is lower, more energy saving; 7. Full marble main structure, high long-term stability; 8. High precision absolute positioning servo motor, ensure the printing accuracy, provide Z axis accuracy test proof documents.

Third, more auxiliary functions, convenient maintenance and management. 1. Data encryption function, which can customize the exclusive data format for customers to prevent the leakage of enterprise secrets; 2. Power management, automatic switching, more energy saving; 3. Real-time monitoring and alarm of machine operating conditions and state parameters to minimize the risk of failure; 4. Accurate prediction of processing time, error within 30 minutes, easy to arrange work; 5. The equipment is simple to operate, no manual guard is needed when working, and no one can make it intelligently for 24 hours; 6. Perfect printing log recording function to facilitate further analysis and troubleshooting; 7. The remote control function can be customized to start and stop printing, take photos and view monitoring videos in real time. It supports the remote view of device status information on the mobile phone.


Post time: Mar-26-2020
